0-32% Brix Refractometer Handheld Refractometer Sugar Concentration Meter Densimeter Brix Saccharimeter ATC Sugar Tester

Please note that options are available with and without boxes.

Description:
The body of refractometer is designed with streamline shape.The internal is built with optical glass lens.The wide cover plate guarantee the perfect match with the lens.The body is of high quality for being made of copper plating.The horizon is clearer for the upgrading of lens.

1.The scale is clear with the imported lens.

2.The refractometer is delicate for being made of copper plating.

3.The measurement is more accurate with Automatic Temperature Compensation.

4.The body is mainly made of metal with silica gel cover.


Specifications :

Item Name: Handheld Refractometer

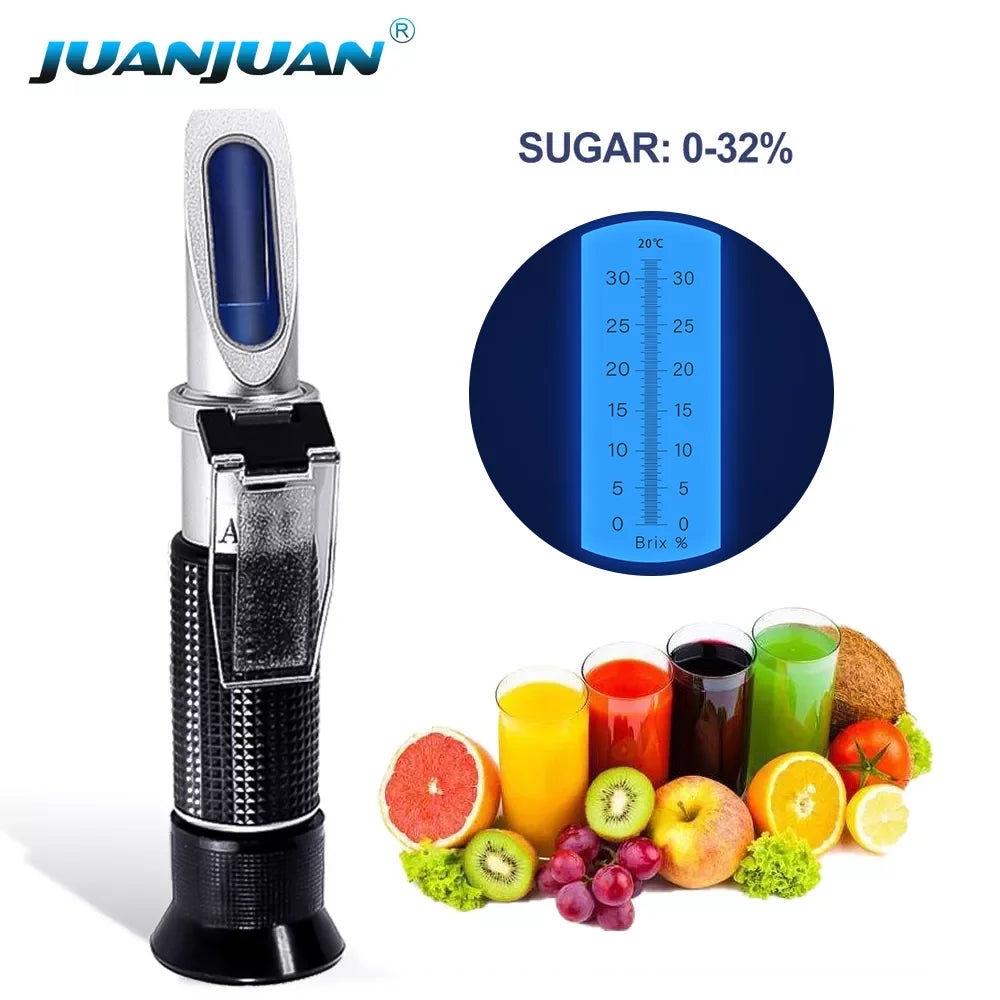

Measuring Range: Brix 0~32%

Resolution: +/-0.2%

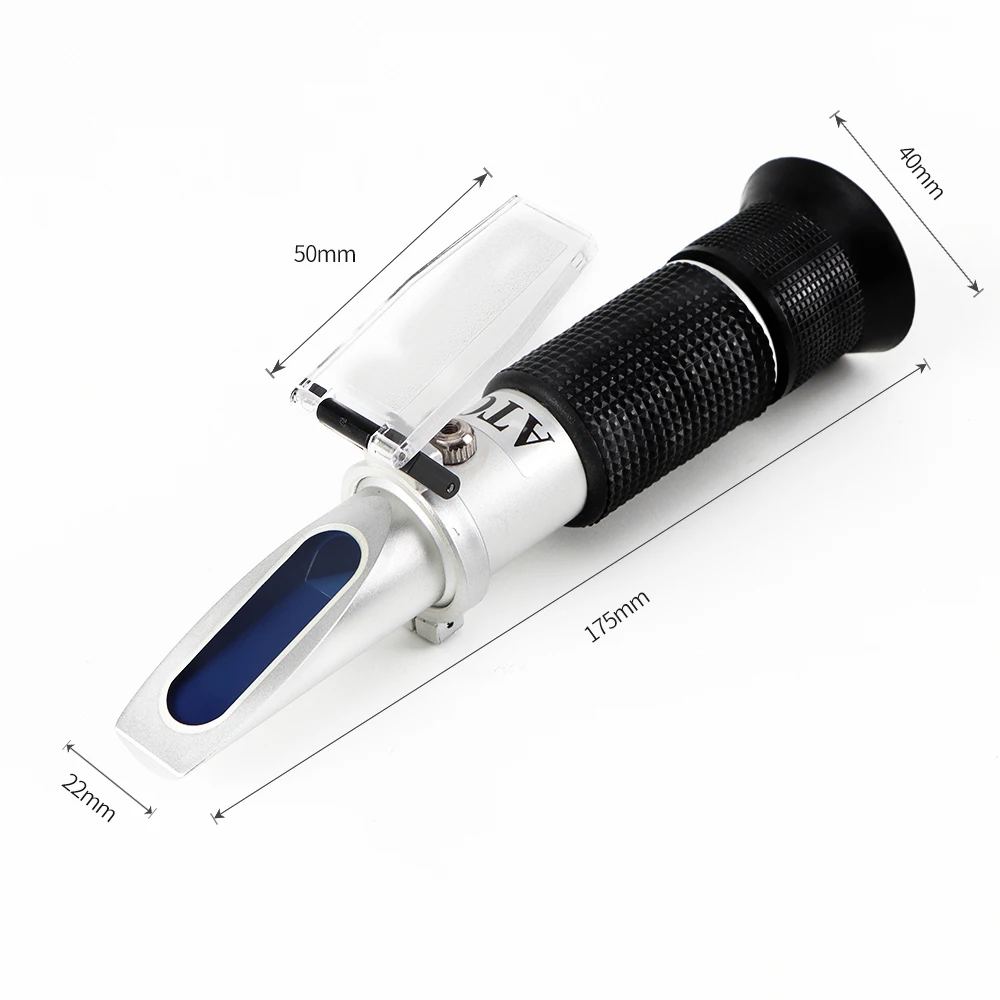

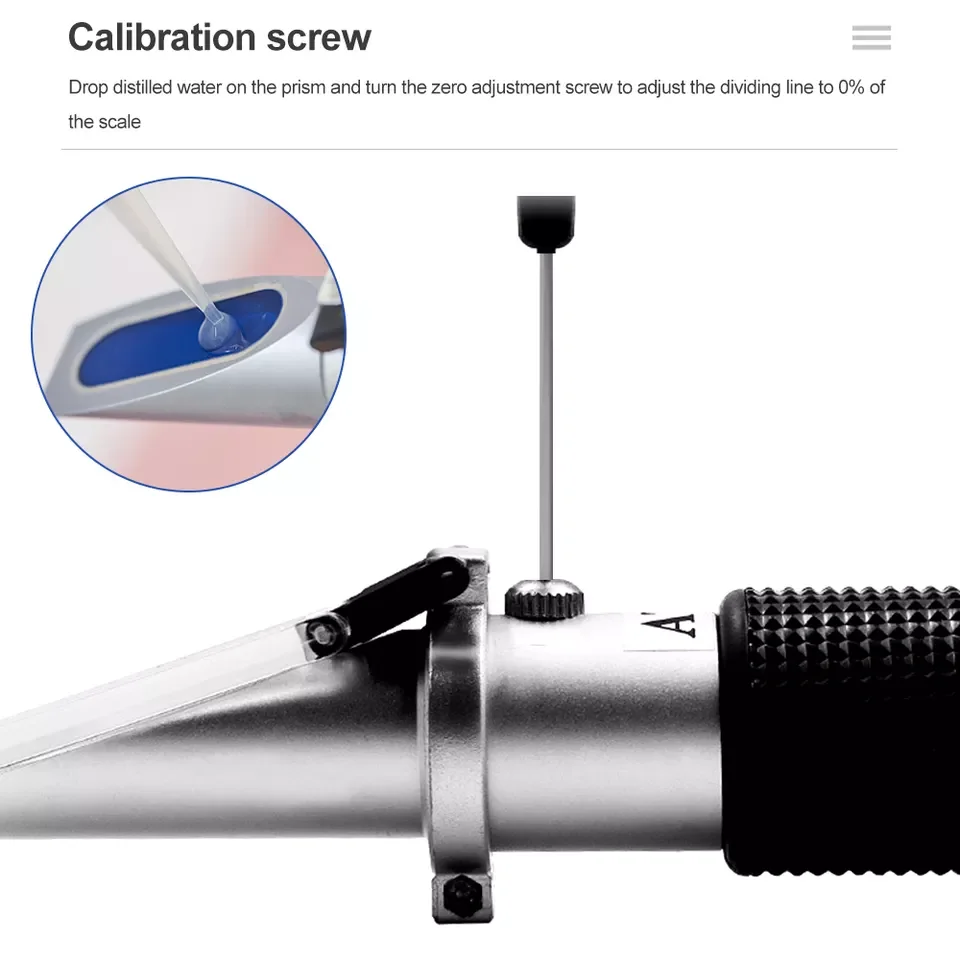

Structure: Refractive prism + cover + calibration bolt + eyepiece + optical system piping

Working Temperature: 10~30degrees

Automatic temperature compensation

Soft rubber eye piece for comfortable viewing

Easy to use focus and calibrate

Adjustable manual focusing

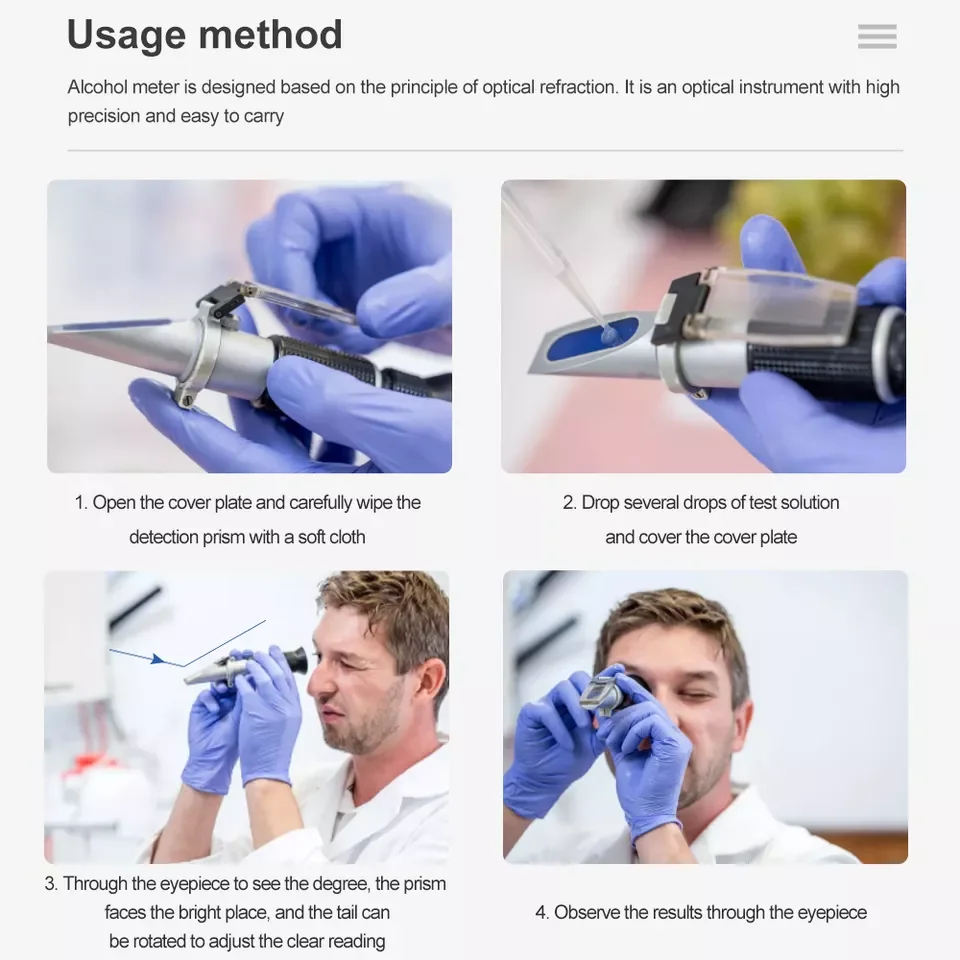

Operation:
Step 1 :Place a few drops of the liquid on the main prism.

Step 2:Cover the prism,look through the eyepiece against the light.

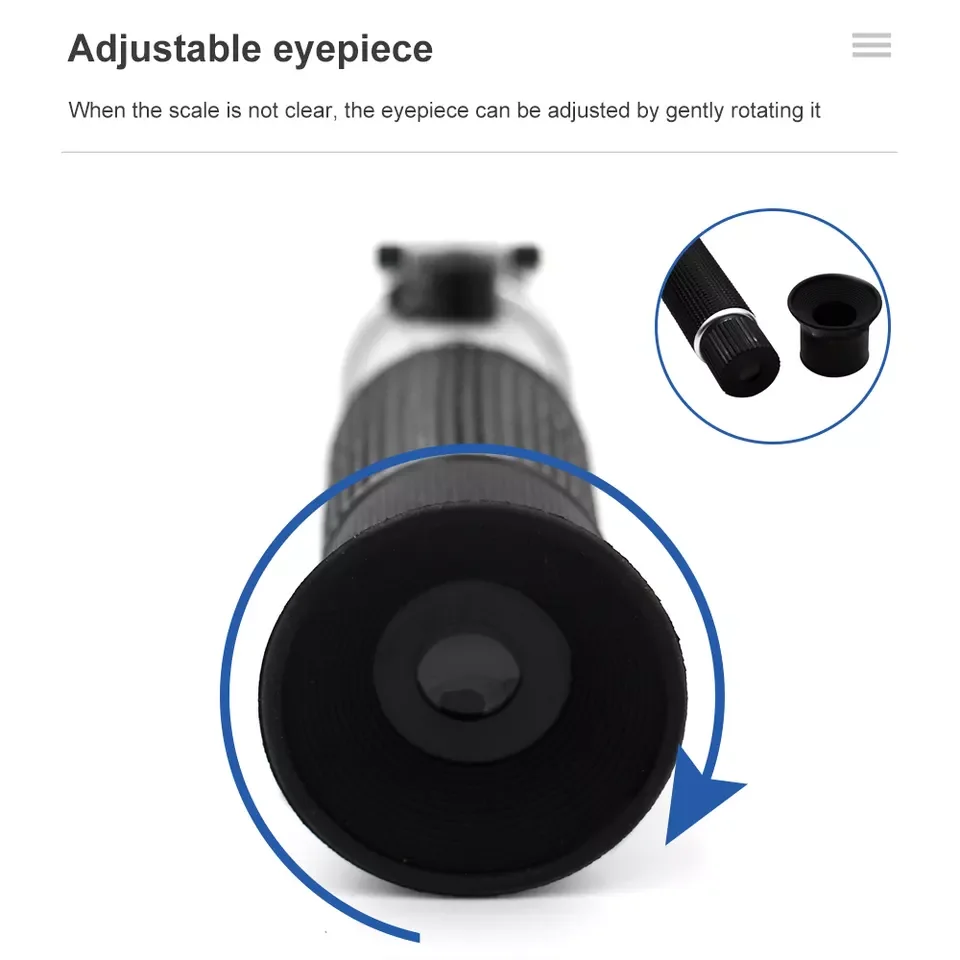

Step 3:Adjust the eyepiece to the clear state.

Step 4:You can read the result value on the scale.

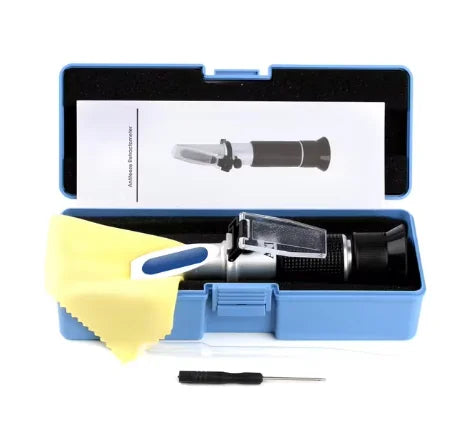

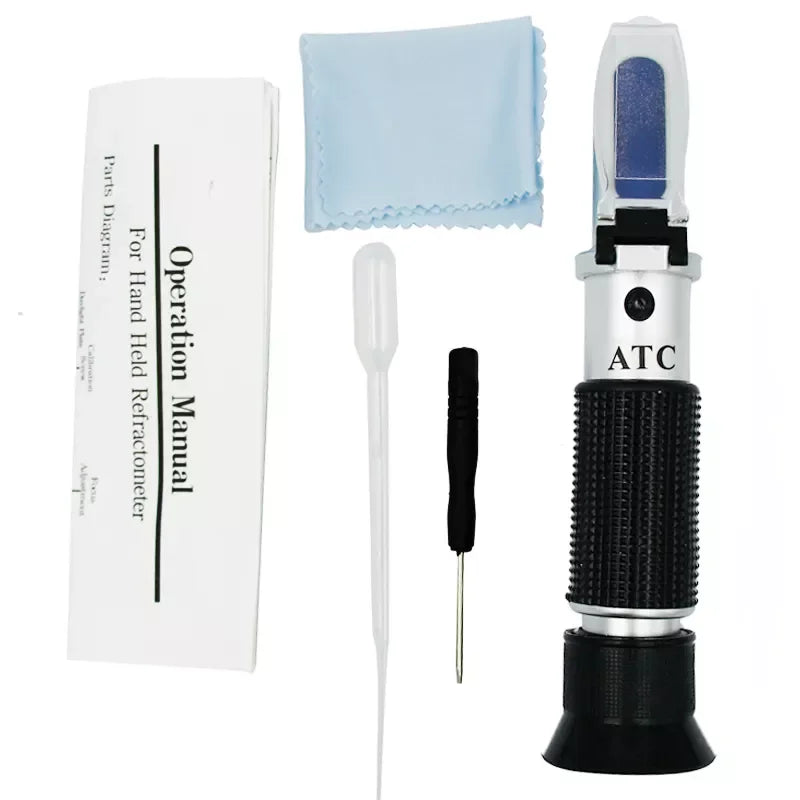

Packing List:

1*Refractometer

1*Pipette

1*Screw Driver

1*Cleaning Cloth
